New Project From Mercedes 911 to 914=>920

#1 Beitrag von Tim911 » 2019-10-03 10:23:49

Hello everyone,

Sorry for not writing in German, Our German isn't that good so I'm going to write in English.

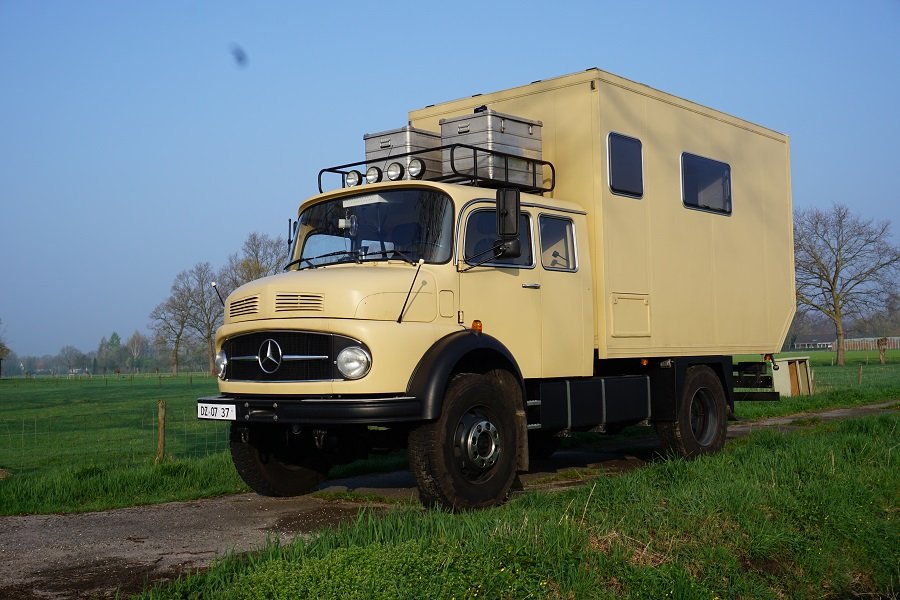

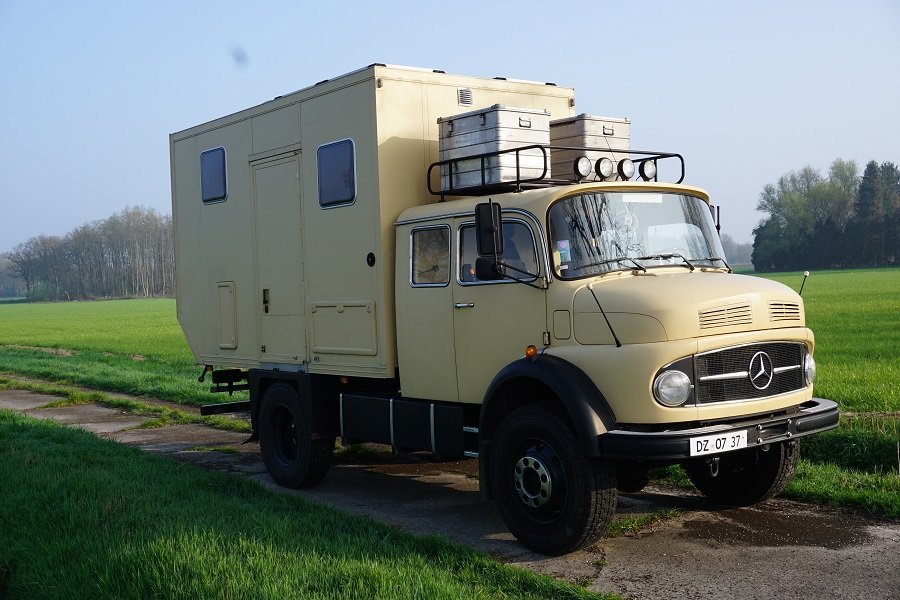

We (Tinka also known as Tim & Ninka) have started a new project after finishing and traveling around in my trustful Mercedes LA 911 B truck. (Total Rebuilding a 911)
klein 1.jpg
klein 2.jpg
We have been traveling from Portugal to white Russia with our old truck and now its time for a new truck build so we want to plan our journey to Africa.

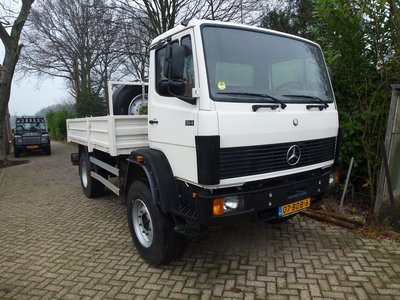

After looking around for a new truck we have found an Mercedes 914 AK in the City nearby out village. I have asked my girl to check it out, she is a first mechanic at Scania Holland, we and bought our new project.

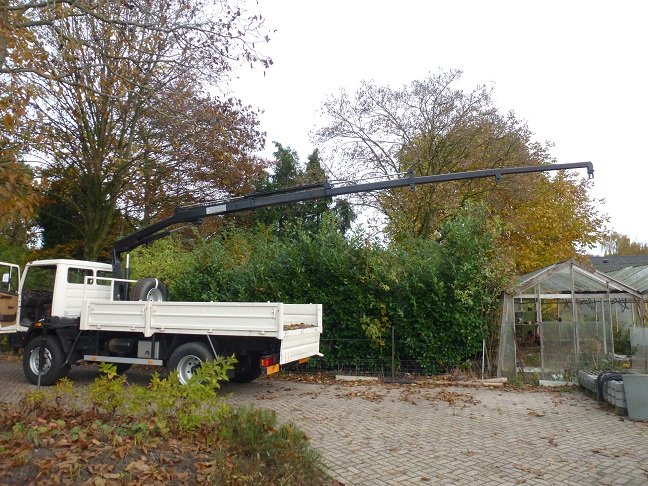

This Mercedes was fitted with a crane with platform, a OM366 with hydraulic pomp , single tires and good condition and has driven 86.000km.
Klein 2.jpg
After sketching, drawing we started to plan the build the truck. First part selling the crane and platform.
A guy from the north of Holland called me op wo wanted to buy the crane, a small drive of 400 km of the north of Holland was also a good test drive ,so I went to over there.
klein 3.jpg
klein 4.jpg

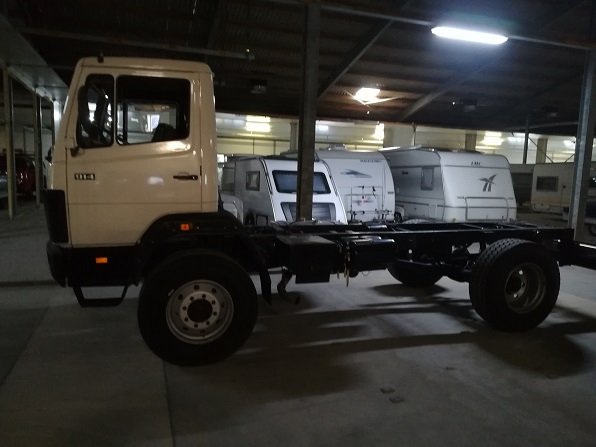

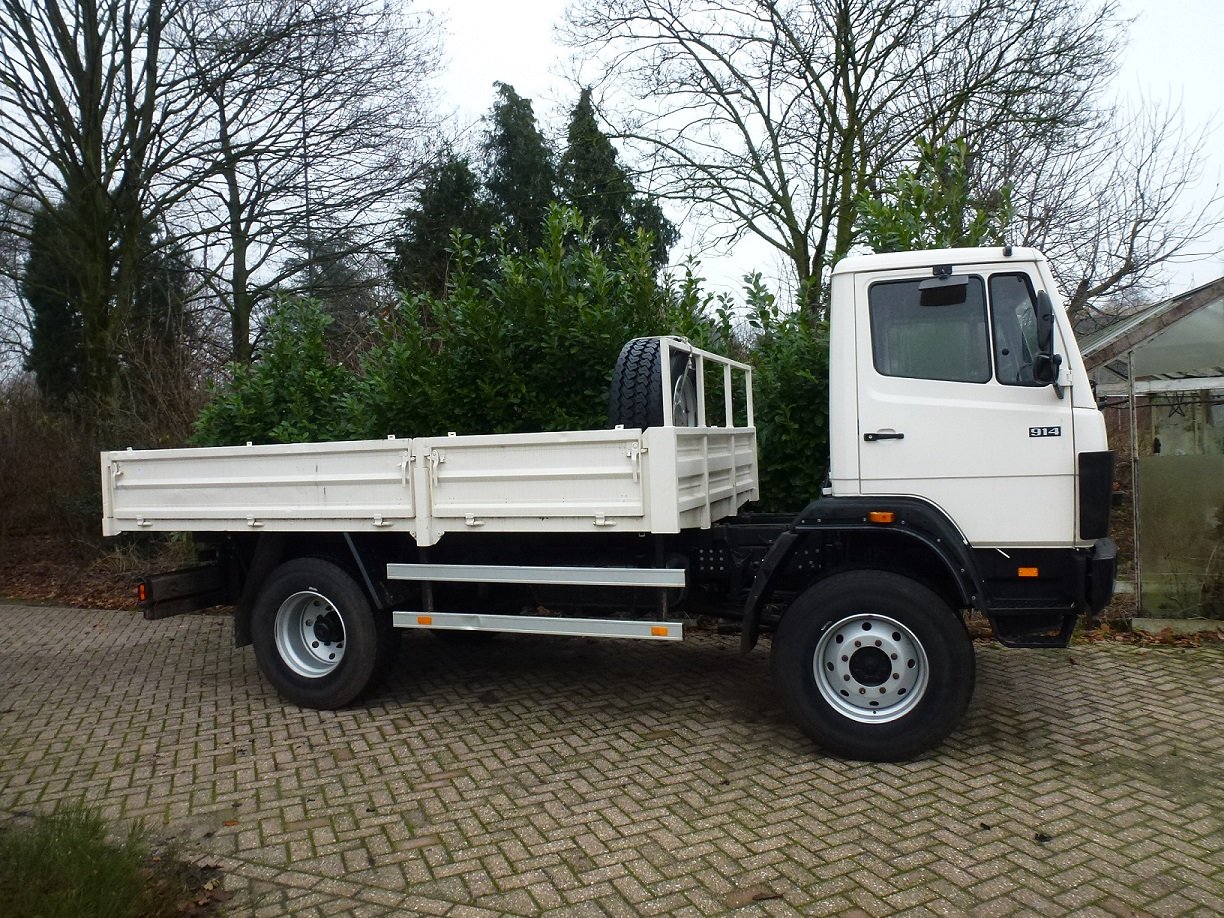

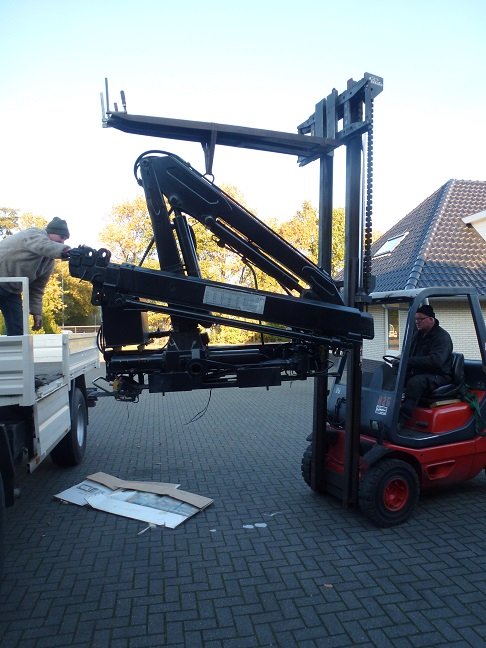

Sold the crane and sold the platform ready to start the build
klein 5.jpg
Step one: New engine with gearbox. First we want to have some more PS. We already have bigger tires but we wanted to reduce the rpm so also a new gearbox.

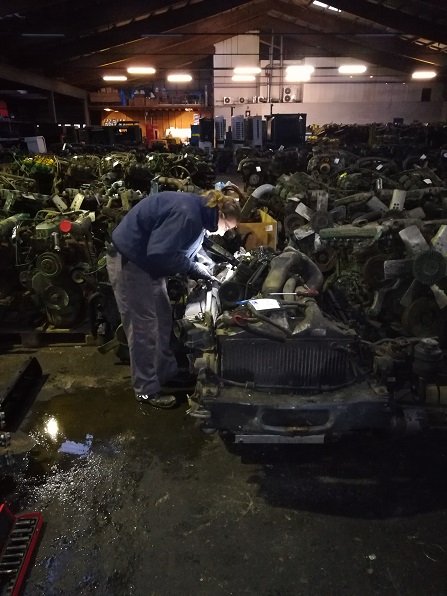

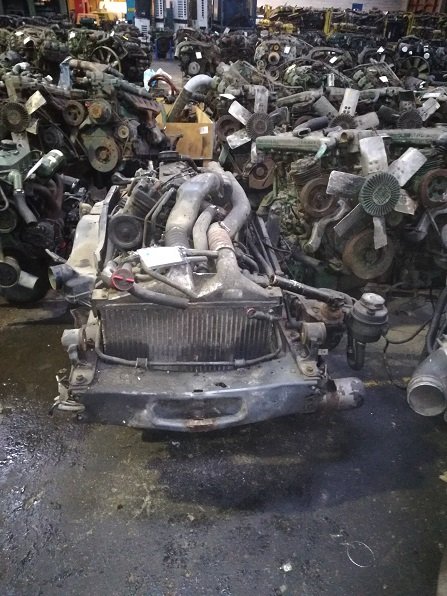

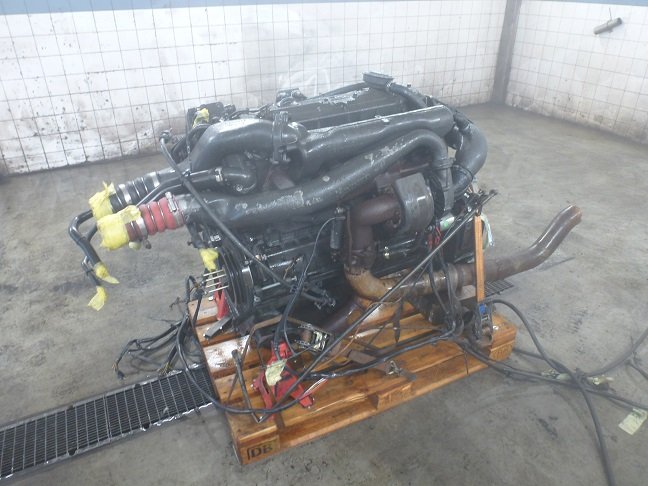

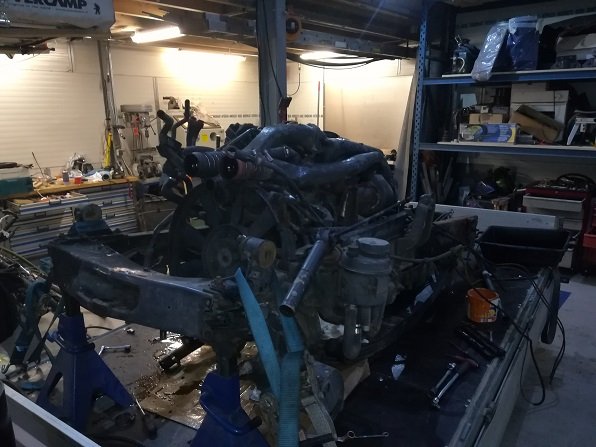

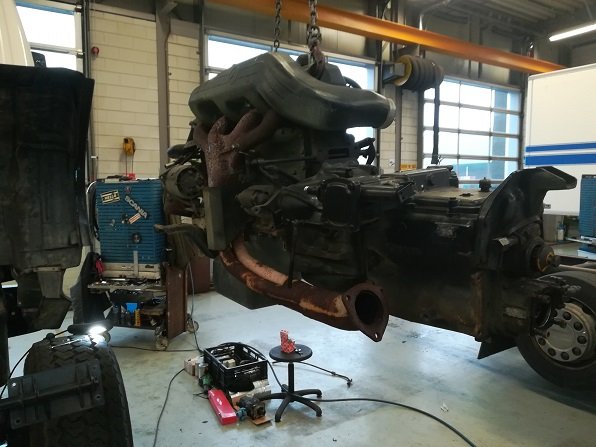

After a while we have found a complete powerpack by Annema Trucks in the top of Holland. Great people over there. We called the up if we could check the engine before buying it and that was no problem at all. So me and my girlfriend went over there and checked the powerpack a OM366LA with GV 4/95 -6 /9.0 gearbox and the complete front from the chassis. (this came in handy beacause of all the extra parts we could use)
klein 6.jpg
klein 7.jpg

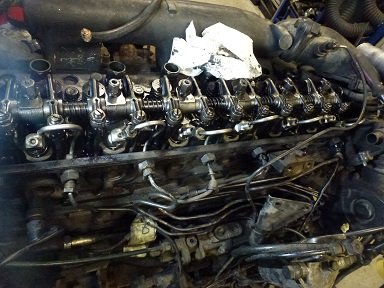

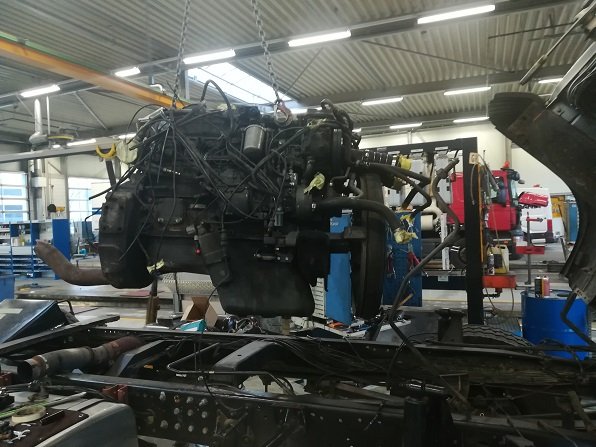

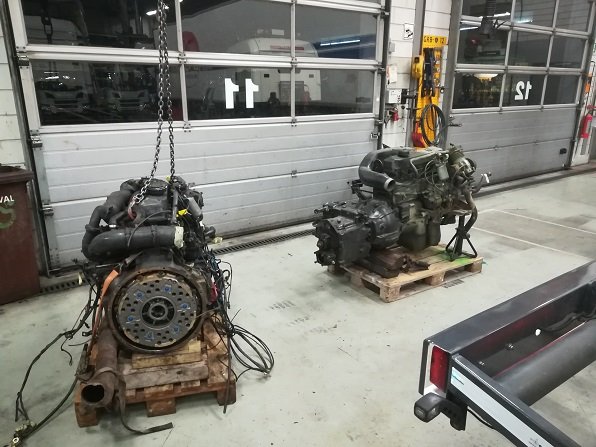

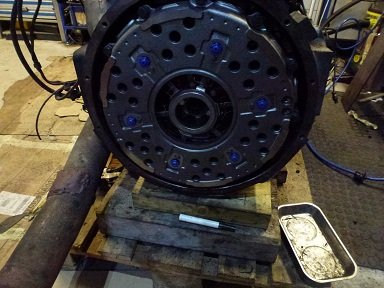

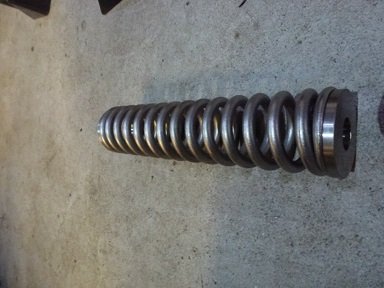

After bringing it back home we took the engine with gearbox from the chassis and did a complete service and renewed the parts like clutsch bearings etc.and a big bath of course
klein 8.jpg
klein 9.jpg
klein 9.jpg (36.4 KiB) 1069 mal betrachtet
klein 10.jpg
klein 10.jpg (32.29 KiB) 1069 mal betrachtet
klein 11.jpg
Time to place it. in the next part

Greetings Tinka
Dateianhänge
klein 6.jpg

Benutzeravatar
Lassie
Allrad-Philosoph
Beiträge: 3846
Registriert: 2006-10-03 11:40:40
Wohnort: Schäbige Alb & Lenggries
Kontaktdaten:

Re: New Project From Mercedes 911 to 914=>920

#2 Beitrag von Lassie » 2019-10-03 14:25:21

Hi there,

Wow, what a project. Wishing you good luck and all the best along all the challenges with the rebuild.

Best regards
Jürgen
... was würdest du tun, wenn du keine Angst hättest ?

Die höchste Form des Glücks ist ein Leben mit einem gewissen Grad an Verrücktheit.
Erasmus von Rotterdam

Benutzeravatar
lura
Forumsgeist
Beiträge: 6263
Registriert: 2006-10-03 12:02:52
Wohnort: HH

Re: New Project From Mercedes 911 to 914=>920

#3 Beitrag von lura » 2019-10-03 19:18:15

Good luck for this project. Nice idea with the 200hp engine.
Do you plan to switch the shelter to the 920?
Gruß
Bernd

Gewinne Zeit durch Langsamkeit

Benutzeravatar
Tim911
infiziert
Beiträge: 35
Registriert: 2008-05-31 11:27:53
Wohnort: St Anthonis /Holland

Re: New Project From Mercedes 911 to 914=>920

#4 Beitrag von Tim911 » 2019-10-03 19:40:57

Lassie hat geschrieben:
2019-10-03 14:25:21
Hi there,

Wow, what a project. Wishing you good luck and all the best along all the challenges with the rebuild.

Best regards
Jürgen
thanks

Benutzeravatar
Tim911
infiziert
Beiträge: 35
Registriert: 2008-05-31 11:27:53
Wohnort: St Anthonis /Holland

Re: New Project From Mercedes 911 to 914=>920

#5 Beitrag von Tim911 » 2019-10-03 19:42:19

lura hat geschrieben:
2019-10-03 19:18:15
Good luck for this project. Nice idea with the 200hp engine.
Do you plan to switch the shelter to the 920?

No I have a new box 5000x2450x2200 with twistlocks

pictures will follow :D

Benutzeravatar
lura
Forumsgeist
Beiträge: 6263
Registriert: 2006-10-03 12:02:52
Wohnort: HH

Re: New Project From Mercedes 911 to 914=>920

#6 Beitrag von lura » 2019-10-03 19:44:24

Okay, it's larger than the old one. So you build all new. Cool :rock:
Gruß
Bernd

Gewinne Zeit durch Langsamkeit

Benutzeravatar
Tim911
infiziert
Beiträge: 35
Registriert: 2008-05-31 11:27:53
Wohnort: St Anthonis /Holland

Re: New Project From Mercedes 911 to 914=>920

#7 Beitrag von Tim911 » 2019-10-05 8:45:13

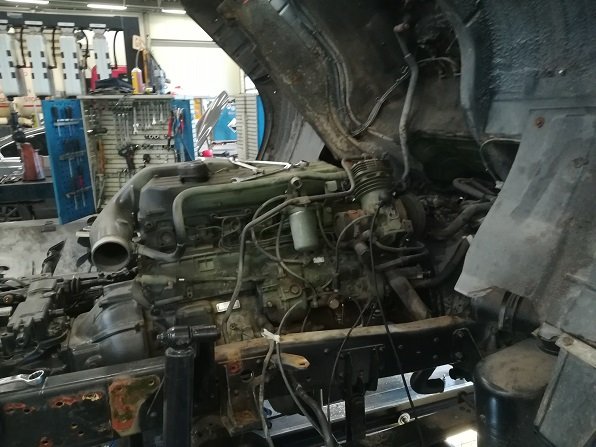

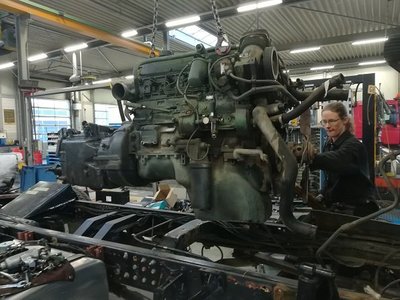

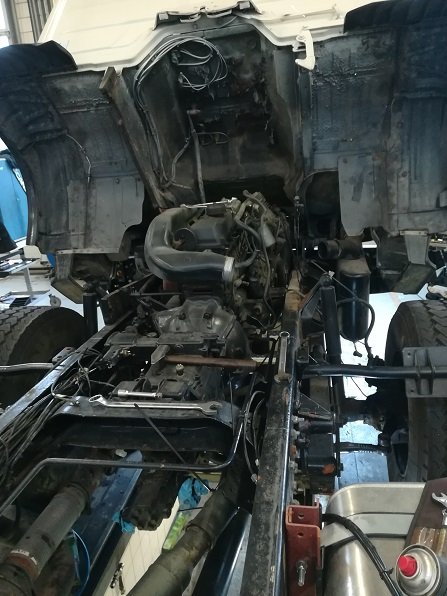

Hello there, time for the next part fitting the engine

After cleaning everything its time to fit the new engine with gearbox.
First I cleaned the chassis and mounted a new fuel tank of 300ltr that I bought in Germany of one of the member this forum. (Thanks again)
klein 20.1.jpg
klein 13.jpg
klein 13.jpg (29.11 KiB) 833 mal betrachtet
klein 14.jpg
klein 15.jpg
klein 16.jpg
klein 17.jpg
klein 18.jpg
klein 19.jpg
klein 20.jpg

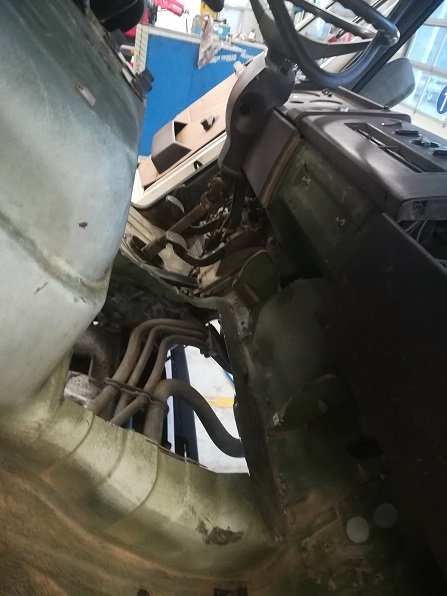

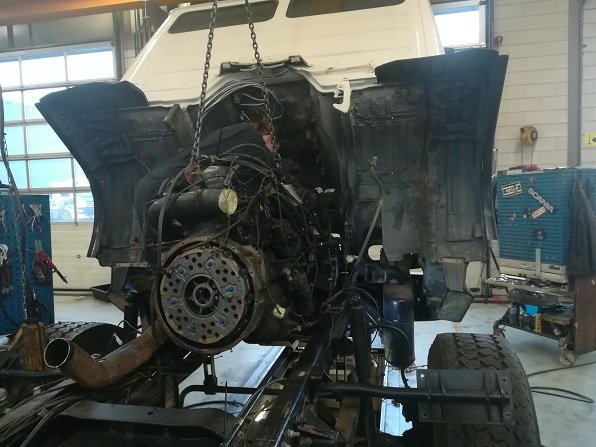

Because of the airintake and intercooler we had to take a piece of the floor out of the cabine.
klein 21.jpg

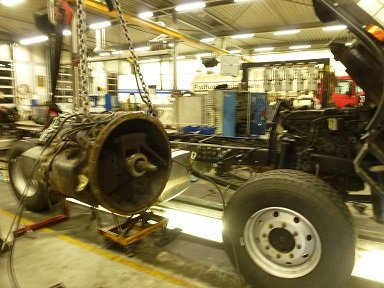

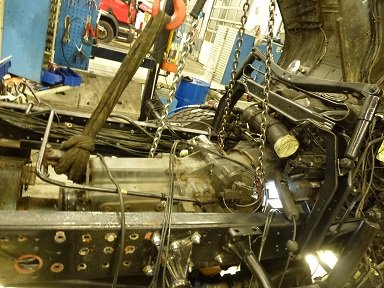

Next the gearbox
klein 22.jpg
klein 22.jpg (34.25 KiB) 833 mal betrachtet
klein 23.jpg
klein 23.jpg (42.79 KiB) 833 mal betrachtet

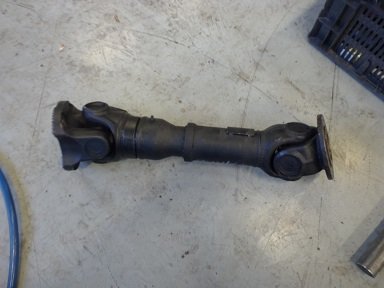

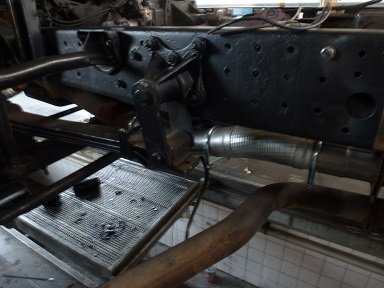

Because of the new gearbox we had to shorten the driveshaft, Make new brackets to reposition the gearbox, adjust shift rod, exhaust etc etc.
klein 26.png
klein 26.png (159.13 KiB) 833 mal betrachtet
klein 24.jpg
klein 24.jpg (19.09 KiB) 833 mal betrachtet
klein 25.jpg
klein 25.jpg (25.51 KiB) 833 mal betrachtet

After doing al this it was time to start the engine......

It runs perfectly :rock: :D :D :D

Now back home for the next part. the sub-frame for the box.

greetings Tinka

Benutzeravatar
FrankyT
LKW-Fotografierer
Beiträge: 131
Registriert: 2019-03-14 21:41:46
Wohnort: Nördlichstes Ba-Wü

Re: New Project From Mercedes 911 to 914=>920

#8 Beitrag von FrankyT » 2019-10-05 8:55:15

Hello..

Cool Projekt indeed :)
Must be very nice to have your own skilled mechanic on board :lol:

As for the timeline.. When did you buy the 914?

Seas,
Franky
Iveco Magirus 120-19 mit Kabinenkürzung und noch nicht definiertem Koffer :)
Aktueller Stand: viewtopic.php?p=832635#p832635

Benutzeravatar
Tim911
infiziert
Beiträge: 35
Registriert: 2008-05-31 11:27:53
Wohnort: St Anthonis /Holland

Re: New Project From Mercedes 911 to 914=>920

#9 Beitrag von Tim911 » 2019-10-05 9:24:24

FrankyT hat geschrieben:
2019-10-05 8:55:15
Hello..

Cool Projekt indeed :)
Must be very nice to have your own skilled mechanic on board :lol:

As for the timeline.. When did you buy the 914?

Seas,
Franky
Hi Franky

Thanks

I bought it in november 2016 but it was in the storage untill last december because of other
Projects.

Greetings

tehdutchie
neues Mitglied
Beiträge: 23
Registriert: 2019-03-05 21:33:22

Re: New Project From Mercedes 911 to 914=>920

#10 Beitrag von tehdutchie » 2019-10-08 10:37:39

Super nice project and some nice work and details on it! Saw the truck this weekend and it looks great!

Antal

Benutzeravatar
siegerland
süchtig
Beiträge: 637
Registriert: 2015-06-06 9:02:52
Kontaktdaten:

Re: New Project From Mercedes 911 to 914=>920

#11 Beitrag von siegerland » 2019-10-08 15:22:36

Tim911 hat geschrieben: Bild
Hej, love to follow your project. I would have little concernes if the convex tank placed on rectangular consoles together with the rubber-granulate-mat are compensating the forces occuring while rough driving mode, the tank could be damaged since you have no formfit, I wonder if convex tank consoles wouldn‘t suit better. Alternatively a block which repeats the shape of the tank upside but rectangular downside.



Stefan
Man kann dem Leben nicht mehr Tage geben, aber den Tagen mehr Leben
.Curd Jürgens.
---
https://ln2-forum.de/member.php?action= ... referrer=9

Benutzeravatar
Tim911
infiziert
Beiträge: 35
Registriert: 2008-05-31 11:27:53
Wohnort: St Anthonis /Holland

Re: New Project From Mercedes 911 to 914=>920

#12 Beitrag von Tim911 » 2019-10-09 8:25:28

Hi stefan

thanks you for your remak.

the rubber-granulate-mat is formed in the shape of the tank so it's suports fully

greetings Tim

Benutzeravatar
Tim911
infiziert
Beiträge: 35
Registriert: 2008-05-31 11:27:53
Wohnort: St Anthonis /Holland

Re: New Project From Mercedes 911 to 914=>920

#13 Beitrag von Tim911 » 2019-10-12 9:01:37

Hi there

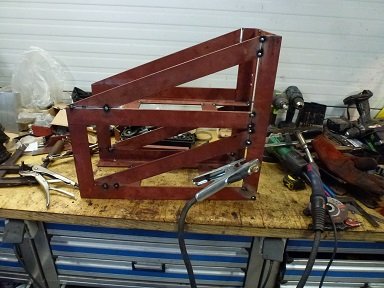

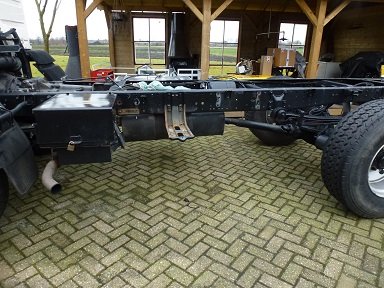

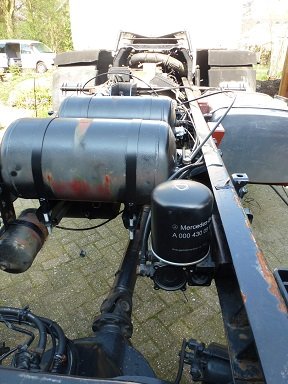

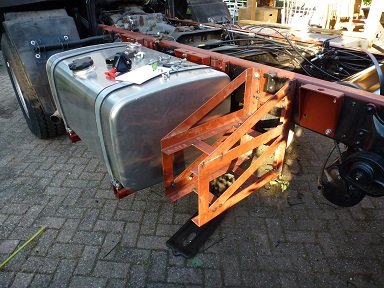

Time for the nex part. Truck is back home and because of the subframe I first want to replace the batteries and airtanks. Because I wanted to create more space below the box for storage and an extra diesel tank on the left side, I have decided to place the batteries above each other and place the air tanks including all air valves in the chassis.
klein 27.jpg
klein 27.jpg (39.91 KiB) 93 mal betrachtet
klein 30.jpg
klein 30.jpg (34.06 KiB) 93 mal betrachtet
klein 31.jpg
klein 31.jpg (31.91 KiB) 93 mal betrachtet
klein 32.jpg
klein 32.jpg (38.6 KiB) 93 mal betrachtet
In the meanwhile I have started drawing the box and starting to build the subframe

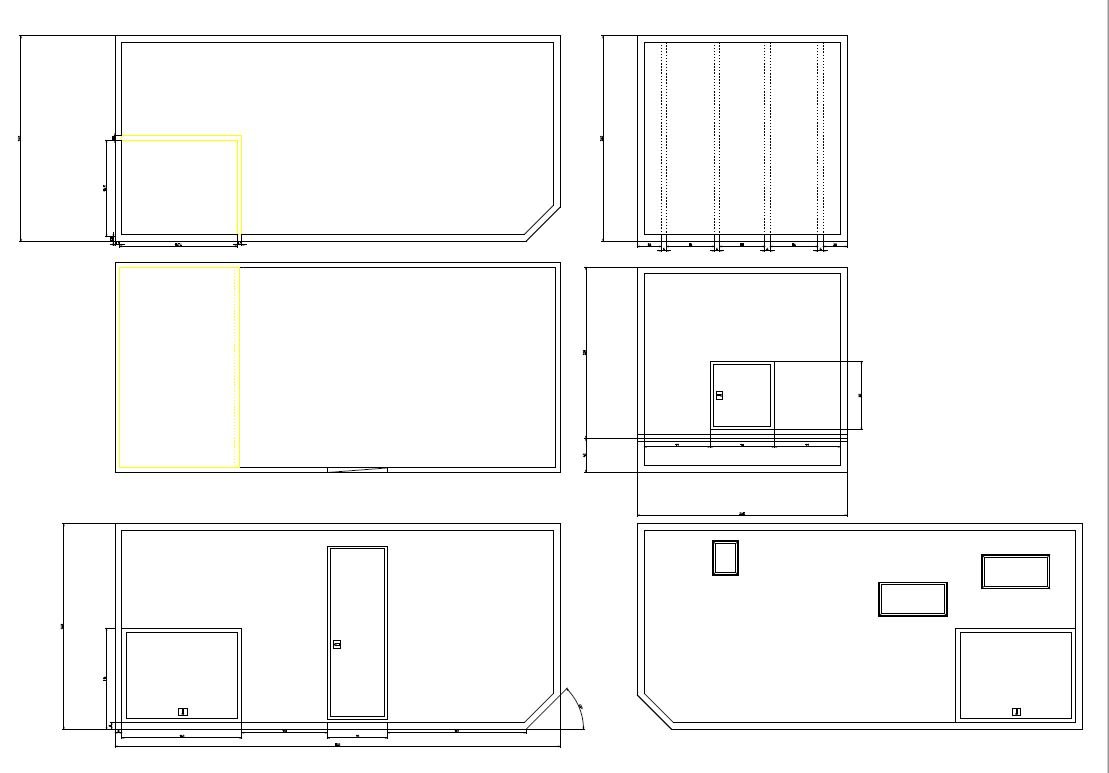

After drawing some sketches and measuring this is what I came up with for the box
klein 1.JPG
So now the measurements are ready for the box time to make the subframe. During the time for building the subframe I started checking out compagnies for making the box or getting the sandwichpanels .
I have built several subframes in the past so I got some experience with this project
So I ordered materials for my own and made de decision to place the pox on twist locks so I can easily take the box of.

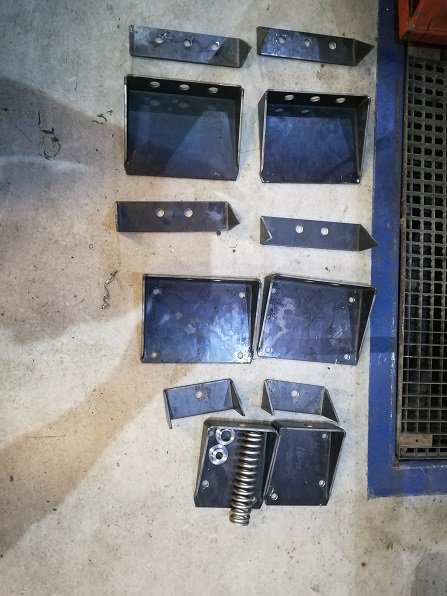

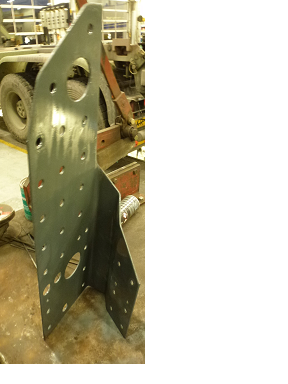

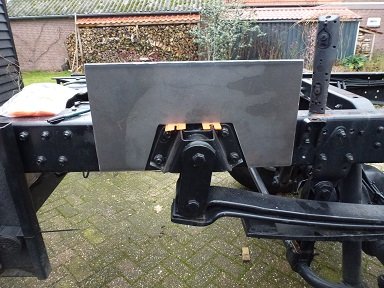

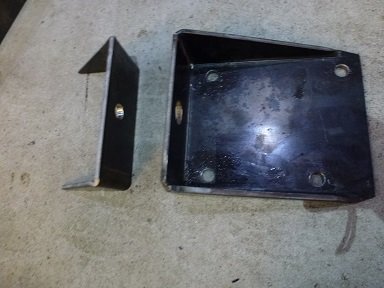

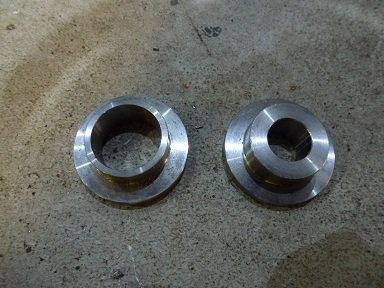

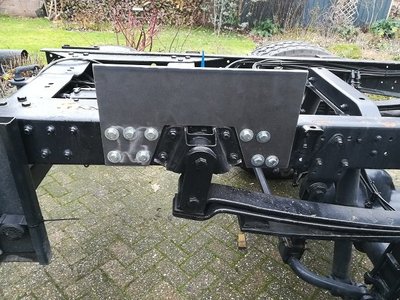

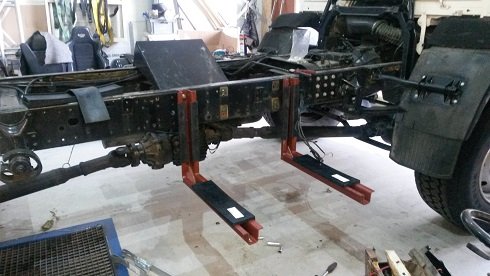

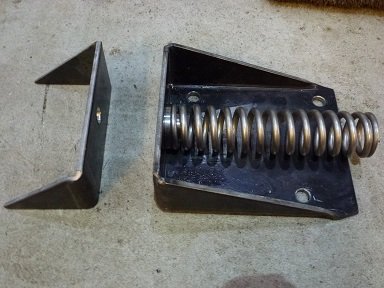

Because off this construction I need to build two frames. The frame that attaches to the box and the subframe for the truck. Lets start with the truck parts so firts the brackets and mountingplates to the truck.

klein 37.jpg
klein 37.jpg (29.15 KiB) 93 mal betrachtet
klein 38.jpg
klein 38.jpg (22.7 KiB) 93 mal betrachtet
klein 36.jpg
klein 36.jpg (22.05 KiB) 93 mal betrachtet
klein 39.jpg
klein 39.jpg (27.04 KiB) 93 mal betrachtet
klein 34.jpg
klein 40.jpg
klein 40.jpg (36.97 KiB) 93 mal betrachtet
klein 33.jpg

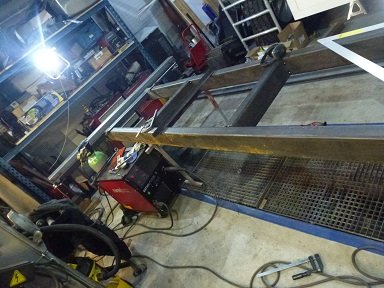

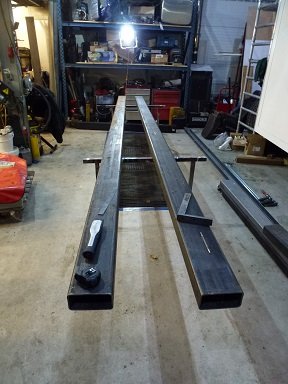

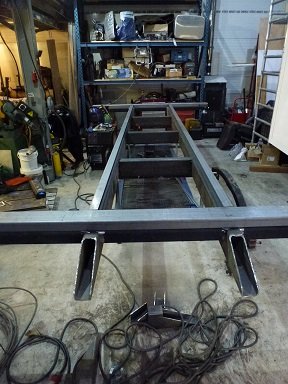

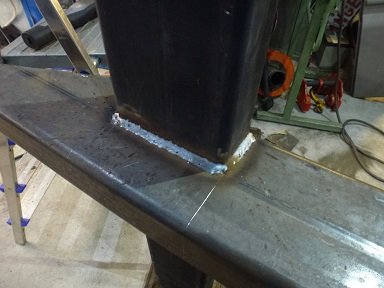

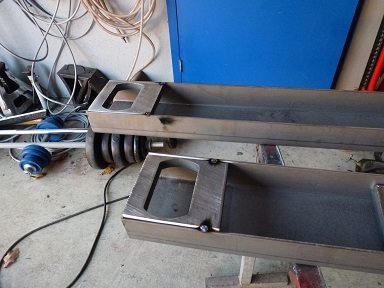

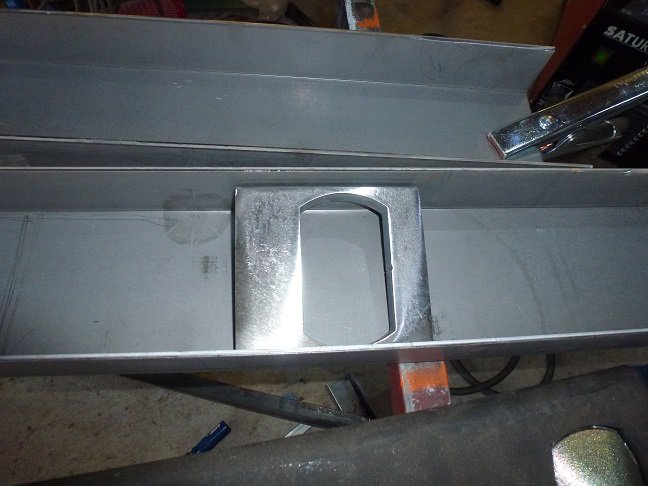

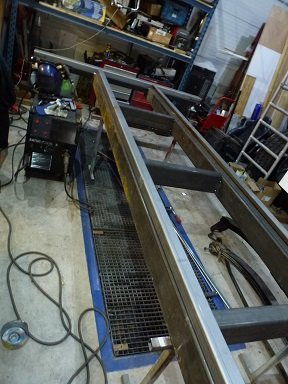

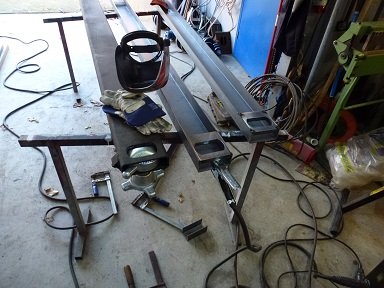

now the both frames
klein 50.jpg
klein 52.jpg
klein 52.jpg (33.85 KiB) 93 mal betrachtet
klein 53.jpg
klein 53.jpg (29.6 KiB) 93 mal betrachtet
klein 54.jpg
klein 54.jpg (34.89 KiB) 93 mal betrachtet
klein 55.jpg
klein 55.jpg (35.44 KiB) 93 mal betrachtet
klein 56.jpg
klein 56.jpg (22.85 KiB) 93 mal betrachtet
klein 57.jpg
klein 57.jpg (34.81 KiB) 93 mal betrachtet
We are getting there :D
