Leak from VTG 170d11

#1 Beitrag von Peterdenmark » 2015-07-17 20:47:27

Hi!

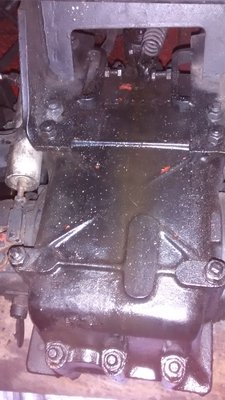

I have a leak from the rod that goes through the VTG in the top. Worst on the drivers side.

Any pitfalls? Or just disassemble and change oring?

The overpressure valve is working!

Thank you!
Dateianhänge

Benutzeravatar
Hatzlibutzli
abgefahren
Beiträge: 1528
Registriert: 2006-10-03 21:48:28
Wohnort: Raubling
Kontaktdaten:

Re: Leak from VTG 170d11

#2 Beitrag von Hatzlibutzli » 2015-07-18 21:02:17

Its an O-Ring 10 x 3 mm on both sides, if you are talking about the shift lever rod for "Gelände/Strasse".
On the Mercurs, which have the same GETRAG VTG, it is an easy job. You may have to remove the pneumatic cylinder ....

Regards ... Simon

Peterdenmark
LKW-Fotografierer
Beiträge: 128
Registriert: 2015-02-17 8:33:11
Wohnort: Denmark - Copenhagen

Re: Leak from VTG 170d11

#3 Beitrag von Peterdenmark » 2015-07-20 8:35:39

Yes, that was certainly easy :-) 15 minute job, apart from the need for a puller to get the levers off.

I was just in doubt whether something could fall apart when I took of the levers that were attached to the rod.

Thanks!
